IDesignSpecTM GDI
Next Generation Semiconductor Specification Automation

Agnisys IDesignSpec GDI (Graphical Design Interface) provides a complete solution for executable hierarchical specification of your memories, register sets, registers, and register fields in an IP or SoC. You can choose from a variety of input formats. You can import existing descriptions in standard formats such as SystemRDL, IP-XACT, JSON, RALF, YAML, XML, and comma-separated values (CSV) files.

Powerful Register, Memory Editor, SystemVerilog, UVM

You can specify the registers and memories using Agnisys-supplied templates and Add-ins for Microsoft Word, Microsoft Excel, or OpenOffice Calc.

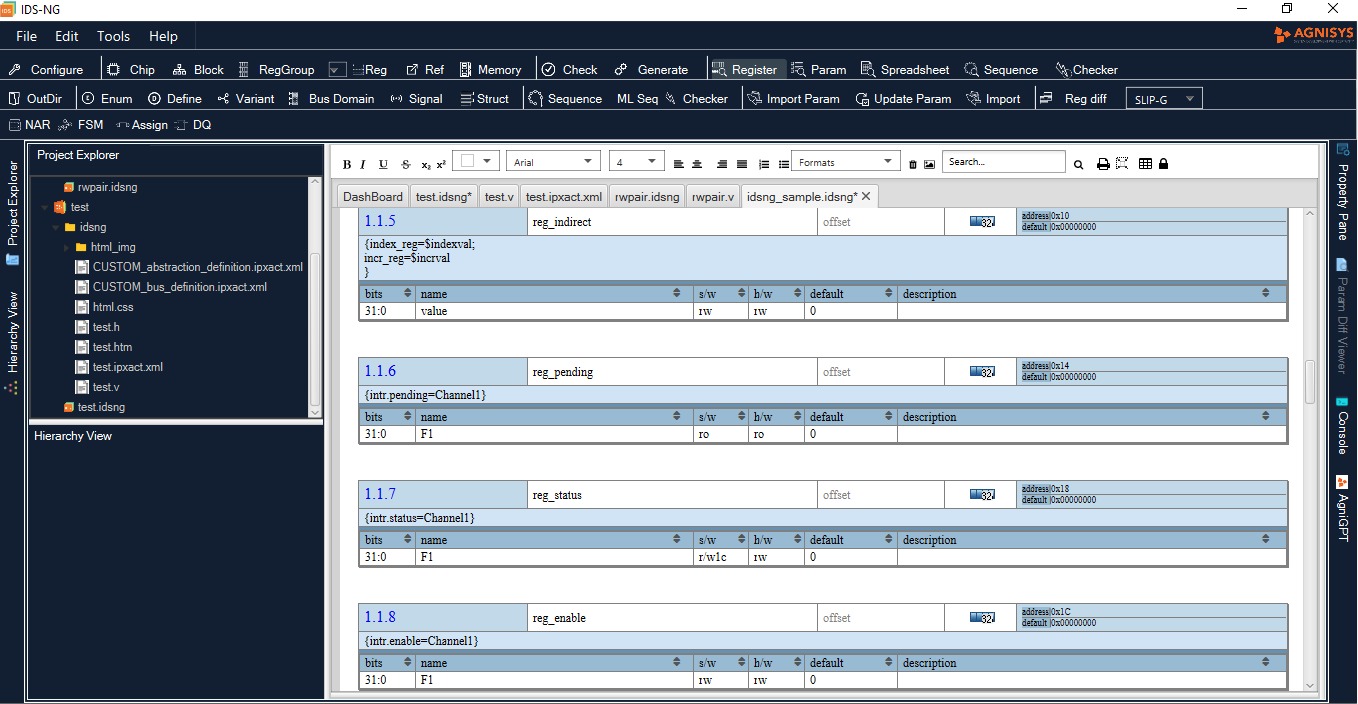

For maximum benefit and flexibility, you can choose the highly intuitive specialized register and memory editor contained within IDesignSpec GDI, a graphical user interface (GUI) for specification entry. IDesignSpec GDI interactively generates a wide variety of output files for the teams on your project, supporting design, verification, embedded programming, validation, and documentation.

IDesignSpec GDI fits seamlessly into your SoC or IP development flow, including integration with the Git revision control system to manage both text and graphics files while fostering collaboration.

IDesignSpec GDI Data Flow 4

How IDesignSpec GDI Enhances Your Development Process

This executable specifications read by IDesignSpec GDI support simple registers as well as more than 400 special register types, including indirect, indexed, read-only/write-only, alias, lock, shadow, FIFO, buffer, interrupt, counter, paged, virtual, external, read/write pairs, and combinations of these types.

progress

RTL generation of registers, memories, CDC logic, and advanced bus connectivity

From your specifications, IDesignSpec GDI interactively generates output files for your design, verification, software, and documentation teams. It generates the complete RTL description for the registers and memories, including a bus slave and decode logic specific to the user-selected bus protocol and any clock-domain-crossing (CDC) synchronization logic needed. This enables instant connection of the your design to the register bus. Supported interfaces include APB, AHB, AHB-Lite, AXI4, AXI4-Lite, TileLink, Avalon, Wishbone, and proprietary buses.

The generated SystemVerilog, Verilog, VHDL, or SystemC RTL code for the registers is human-readable with easy-to-follow comments. Your hardware design team simply adds the generated files to their list of hand-written application logic RTL blocks and third-party IP blocks for use with simulation, logic synthesis, and other tools in the development flow.



Generation of SystemVerilog testbench models and C/C++ headers

IDesignSpec GDI generates a SystemVerilog model compatible with the UVM standard and suitable for inclusion in your UVM testbench. This eliminates a lot of work on the part of your design and verification teams. IDesignSpec GDI helps your embedded programmers as well, by generating C/C++ headers for the memories, registers, and fields. This replaces tedious manual transcription of specification details into code and avoids any chance of errors in the process.



Generation of high-quality documentation from the specification

For your technical writers, IDesignSpec GDI generates high-quality documentation of registers and memories suitable for inclusion in user manuals. User-selectable formats include Microsoft Word, HTML, PDF, Markdown, and DITA.

Agnisys-brochure-cover

Download the IDesignSpec Suite Brochure

View a summary of each product and how the suite enables your semiconductor teams to more rapidly develop products while improving efficiency.

Benefits of IDesignSpec GDI

The automatic generation of all these files for the project teams saves time and resources early in the project. Every file generated by IDesignSpec GDI is one that you do not have to code by hand. The correct-by-construction nature of specification generation also eliminates entire categories of bugs, accelerating verification and pre-silicon validation.

IDesignSpec GDI provides even more value every time that a specification changes:

  • Simple and automatic re-generation of all relevant files
  • Eliminates manual update effort and ensures that all your teams are always in sync
  • A common front end and interactive generation engine for all Agnisys products
